Key Attributes
| Function | Alarm I/O, RESET, built-in mic, one-way audio, Two-way | Data Storage Options | SD Card |
| Video Compression | H.265/H.264 | Special Features | PAN-TILT, motion detection, Sound Detection, Temperature |
| Warranty | 2 years | Sensor | CMOS |
| Customized support | OEM, ODM, Customized logo, Online technical support | Place of Origin | Guangdong, China |
| Audio Input/output | VGA , CVBS |
Brand Name
|
EMV |
| Model Number | EMV-HD5801HA-S | Operation System | Linux |
| protocol | ISO 7815 | Keyword | Truck/Bus /Van /Trailer dvr |
| Resolution | 1080P | Certification | CE |
| Channel | 8CH | Video Recording | Mirror video record, Damping shock technology |
| 4G | 4G Optional | GPS | GPS Optional |
| Type | Mobile AHD DVR | Storage | 1x2TB HDD/SSD+1x128GB SD |
| Format | H.264 Video Compression |
Products Description

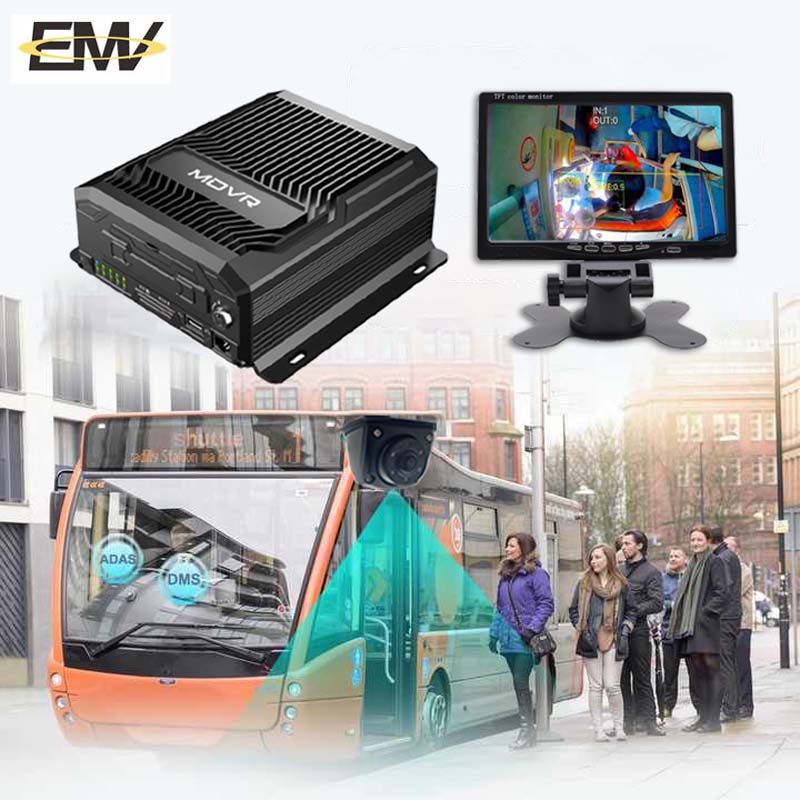

8CH 1080P AHD HDD SSD 4G GPS Bus Truck MDVR
● Embedded compact design, low power, high efficient H.264 compress, high reliability.
● 8CH 1080P HD recording, supports 4TB hard disk & 256GB SD card.
● Optional 3G/4G, GPS, WIFI functions.
● Built-in G-sensor.
● Data protection when in sudden power off, optional inside-laid UPS battery.
● Rich external ports, incl. 2x RS232, 2x RS485, 8x alarm in & 2x alarm out ports, VGA etc.
● Auto image switch of car left/right turning, backing change.
● With a simple hard disk installation and a good and reliable anti-shake protection system.
● Directly mouse controlled menu entering.
● Export of video recordings directly via USB port.
● CNMS platform ability for big fleet and user management.
● Simple easy to operate video playback software.
● 8CH 1080P HD recording, supports 4TB hard disk & 256GB SD card.
● Optional 3G/4G, GPS, WIFI functions.
● Built-in G-sensor.
● Data protection when in sudden power off, optional inside-laid UPS battery.
● Rich external ports, incl. 2x RS232, 2x RS485, 8x alarm in & 2x alarm out ports, VGA etc.
● Auto image switch of car left/right turning, backing change.
● With a simple hard disk installation and a good and reliable anti-shake protection system.
● Directly mouse controlled menu entering.
● Export of video recordings directly via USB port.
● CNMS platform ability for big fleet and user management.
● Simple easy to operate video playback software.
| Device parameters | Performance index | Model | EMV-HD5801HA-S |
| Product Name | 8Channel Mobile AHD DVR(HDD Storage) | Operation System | Linux |
| Operation Interface | Graphical Interfaces, Chinese/English optional | File System | Proprietary Format |
| System Privileges | User Password | Video Input | 8CH AHD Independent Input: CIF/HD1/D1/720p/960P optional |
| Video Output | 1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Pin Aviation Connector18 LEDS | Video Display | 1 ~ 8 Screen Display |
| System Resources | PAL:25frames/Sec;NTSC:30frames/Sec | Audio Input | 8Channels Independent Input 600Ω |
| Audio Output | 1 Channel(8Channels Can Be Convert Freely) | Distortion Plus Noise | ≤-30dB |
| Recording Mode | Sound And Image Synchronization | Audio Compression | G711A |
| Image Compression | H.264 Fixed Code Stream | Image Format | 8*1080P |
| Video Stream | 192K-2.0Mbit/s | Video Taking Up Of Hard Disk | 85M-900MByte/hour/CH |
| Product Weight | 3.5KG(without HDD) |
Products Usage
Bus MDVR System
●Each bus install four (HD 720P) cameras, 1 fireproof box and 1 panic button for driver.
●The panic button triggered alarm can be sent to the platform.
●Support users remotely taking JPEG pictures and saved in server.
●Support GPS/GLONASS modules, with high accuracy.
●Support 3G/4G, monitoring center can check live data anytime.
●Big capacity 2TB for data storage, no need to format.Plug and play.
●The panic button triggered alarm can be sent to the platform.
●Support users remotely taking JPEG pictures and saved in server.
●Support GPS/GLONASS modules, with high accuracy.
●Support 3G/4G, monitoring center can check live data anytime.
●Big capacity 2TB for data storage, no need to format.Plug and play.
Vehicle Surveillance Solution
●Helps prevent injury to personnel and members of the public.
●Can reduce potential legal claims caused by damage and injury.
●Locate and communicate with the staff anytime anywhere.
●Staff can ask for help anytime when it is needed.
●Monitor and supervise the staff.
●Improve working efficiency.
●Big data analysis can help collect driver/vehicle/refuse data.
●Can reduce potential legal claims caused by damage and injury.
●Locate and communicate with the staff anytime anywhere.
●Staff can ask for help anytime when it is needed.
●Monitor and supervise the staff.
●Improve working efficiency.
●Big data analysis can help collect driver/vehicle/refuse data.
