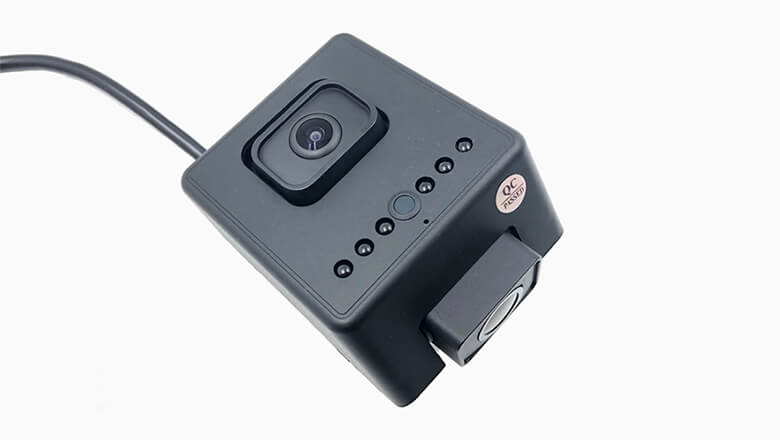

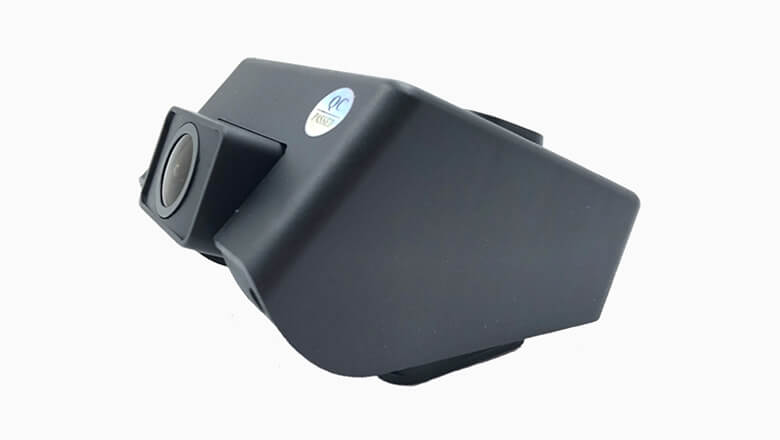

● Dual camera with one body mini vehicle wide view camera;
● One single cable 6Pin Aviation Connector out from camera and 3M Y Extended Cable with 4 pin aviation connector.
● It can record in the front of car(outside) and inside at the same time;
● Special design for Taxi /car /Suv/Truck inside use.
● Horizontal view angle:130 degree can synchronous take driver and passenger’s video recording;
● Excellent night-vision,clear image.
● When IR light is ON,it won’t have infrared visible line,so that won’t distract driver’s sight, so it can be safe driving.
● 1080P AHD,960P 1.3mp,2.8mm&2.1mm lens(100&130 degree).
Product Specification
| Model | Inside View Cam |
| Image Sensor | 1080P AHD,960P 1.3MP |
| Synchronization | INT |
| Scanning | 2:1 Interlace |
| Horizontal Resolution | 1920×1080 |
| Horizontal angle | 130 degree(wide view) |
| IR LED | 6pcsΦ8 IR LED |
| IR Distance | 5m |
| Front View Cam | High-resolution CMOS,2.8m lens |
| Inside View Cam | High-resolution CMOS,2.1m lens |
| Audio | With Audio |
| Minimum Illumination | 0Lux(IR ON) |
| Gamma modification | 0.45 |
| Gain control | Auto |
| White Balance | Auto |
| Electronic shutter | 1/60(1/50)~1/100,000 sec |
| Video output | 1.0Vp-p Composite Video Output,75ohm |
| S/N Ratio | More than 48dB |
| Operational Voltage | DC12V |
| Operational Temperature | (- 25℃~+85℃) |
| Application use | Vehicle include taxi, bus, car inside use. |
| Body size | 82.7x69x39mm |
