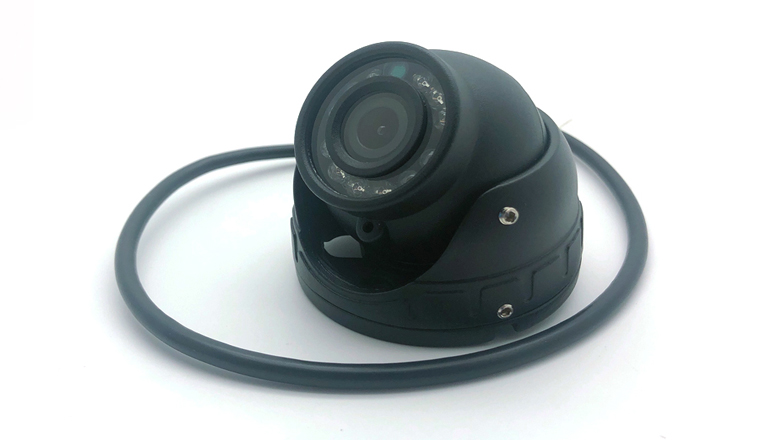

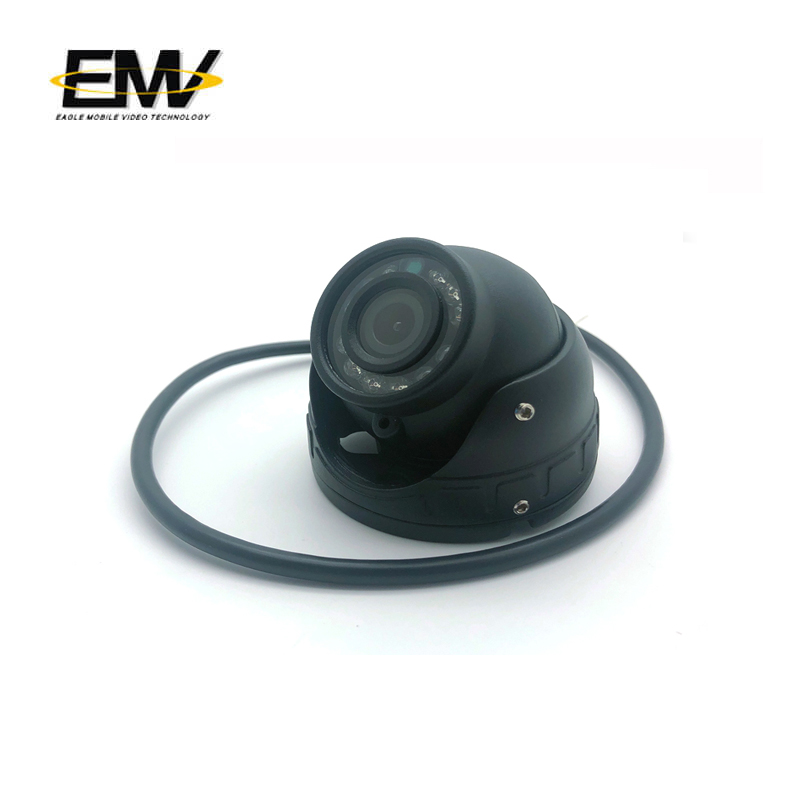

● AHD1080P 960P 720P Vehicle Inside View camera ;
● Dome camera
● Sensor: 1.3 Megapixel 720P AHD,2.0 Megapixel 1080P AHD
● Lens: 2.5mm/2.8mm/3.6mm
● Lens Angle: 90°/100°
● Adio: Without audio(Optional Audio)
● Infrared LED light: 12PCS
● IR Distance: 10m
● Waterproof Rate：IP66
● Shell material: aluminum alloy,Vandalproof
● Vehicle Camera for Truck Fleet application
Product Specification
| Model |
EMV002AL |
EMV002AH |
| sensor | 1/4” 720P Megapixel CMOS AHD | 1/3” 1080P Megapixel Sony CMOS |
| Effective Pixels | 720P 1.3 Megapixel | 1080P 2.0Megapixel |
| Signal system | PAL/NTSC | |
| Horizontal resolution | 720P | 1080P |
| minimum illumination | 0lux/F1.2 (LED ON) | |
| Day & Night System Mechanical ICR | Day & Night System Mechanical ICR | |
| Audio | Without Audio(Optional Audio) | |
| lens | F=2.5mm/2.8mm/3.6mm | |
| SNR | ≥50dB | |
| Shutter speed | PAL:1/50 s -1/100.000 s, NTSC : 1/60s – 1/100.000 s | |
| W/B | ATW | |
| IR wavelength | No | |
| IR light | 12PCS | |
| IR distance | 10M | |
| Video output | 1Vp-p,75 ohm, BNC | |
| Power supply | DC 12V ± 10% ,0.5A , POE optional | |
| Working temperature | -10℃~+60℃ | |
| Waterproof grade | IP66 | |
| Dimension |
68(L) ×68(w) ×55(H) mm |
|
| Weight | 0.3Kgs | |
