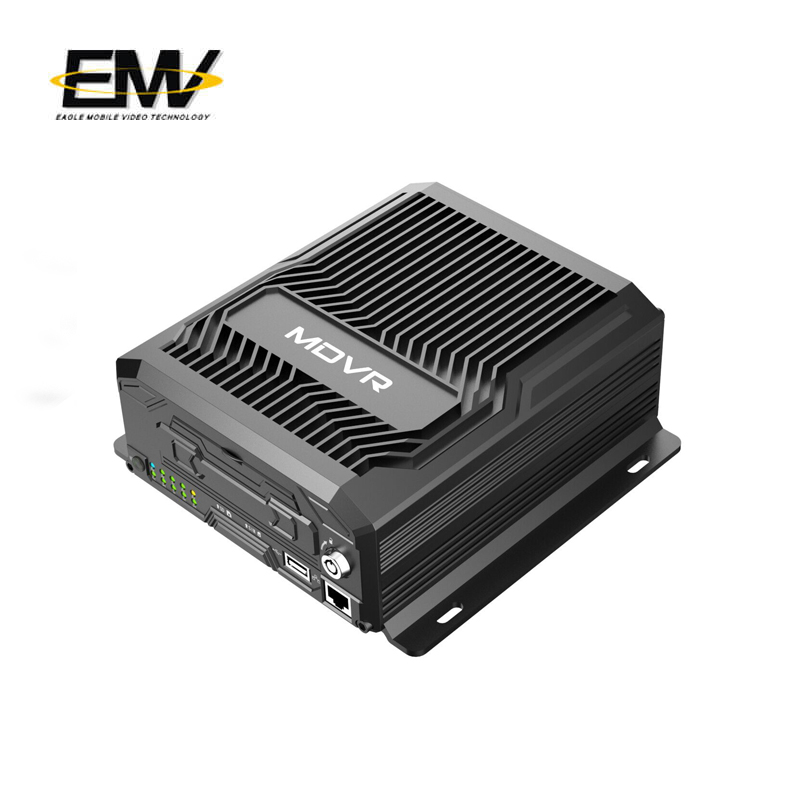

★ Embedded compact design, low power, high efficient H.265 & H.264compress, high reliability.
★ 5CH 1080P HD recording, supports 4TB hard disk & 256GB SD card.
★ Support 4CH 1080P AHD + 1CH 1080P IPC
★ Optional 4G, GPS, WIFI functions.
★ Built-in G-sensor.
★ Data protection when in sudden power off, optional inside-laid UPS battery.

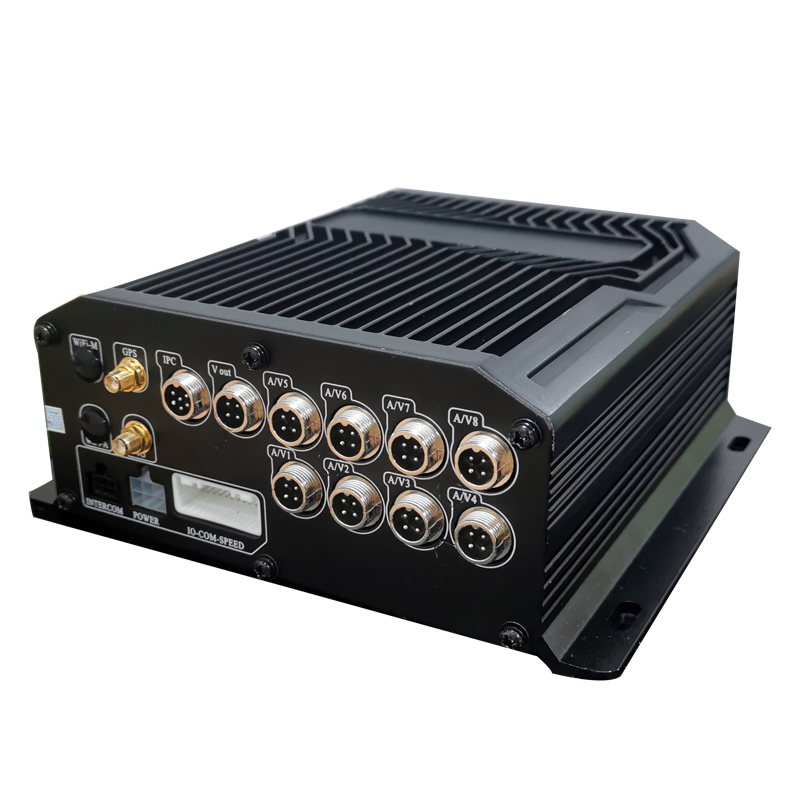

★ Rich external ports, incl. 3x RS232, 1x RS485, 8x alarm in & 2x alarm out ports, VGA etc.
★ Auto image switch of car left/right turning, backing change.

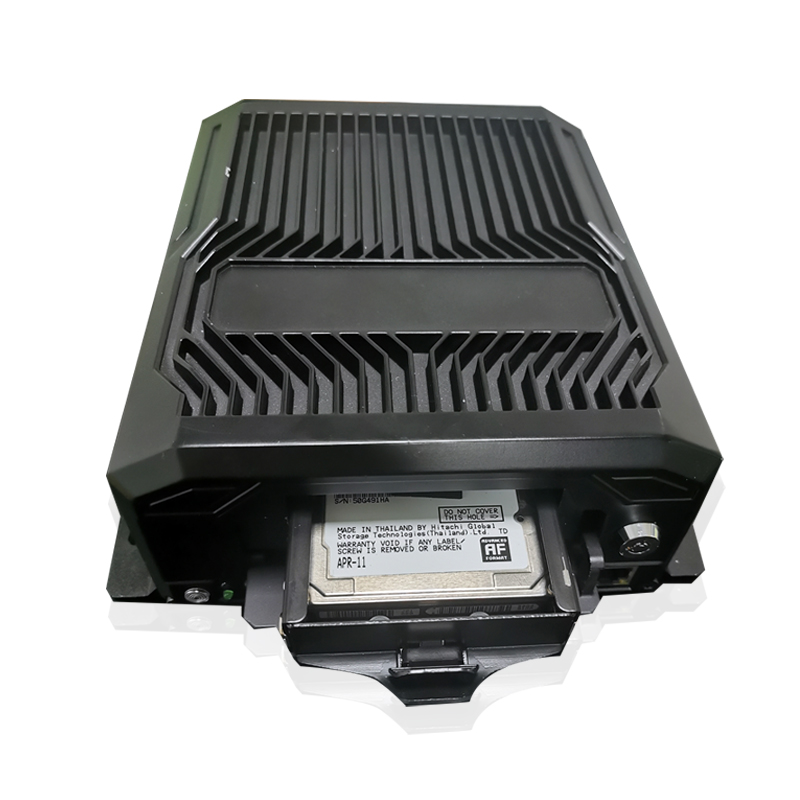

★ With a simple hard disk installation and a good and reliable anti-shake protection system.
★ Directly mouse controlled menu entering.
★ Export of video recordings directly via USB port.
★ CMS platform ability for big fleet and user management.
★ Simple easy to operate video playback software.
Product Specification
| ITEM | PARAMETER | 5CH 1080P HDD SSD Hybrided MDVR |
| System | Language | English |
| Operation System | Linux | |
| Interface | Imaging menu operation interface (OSD Menu) | |
| Password Security | Two levels authority: admin, user | |
| Video | Video Input | 4CH 1080 720P AHD Camera+1CH 1080P IPC |
| Video Output | 1 composite video & 1 VGA outputs | |
| Video standard | PAL, NTSC | |
| Video compression | H.264 Main profile, 100 frame / sec | |
| Video Display | Single/Quad screen video | |
| Audio | Audio Input | 4 audio input |
| Audio Output | 1 audio output | |
| Audio Code | G726/G711 | |
| Way of recording | Simultaneous AV recording | |
| Image Processing & Storage | Image format | CIF/HD1/D1/720p/1080P optional |
| Standard of Video Stream | ISO14496-10 | |
| Video code rate | CIF: 1536Kbps ~ 128Kbps, | |
| HD1: 2048Kbps ~ 380Kbps, | ||
| D1: 2048Kbps ~ 400Kbps, | ||
| 720p: 2048Kbps ~ 4096Kbps, | ||
| 1080P: 2048kbps~8192kbps | ||
| Image quality: Grade 1(best quality) – 8(worst) | ||
| Audio Code Rate | 40KB/s | |
| Data Storage | Support 1x 4TB HDD SSD & 1x 256GB SD storage | |
| Alarm | Alarm input | 8x Alarm input |
| Alarm output | 2x Alarm output, with 12V high electrical level | |
| Communication Port | RS232 port | 3x RS232 |
| RS485 port | 1x RS485 | |
| RJ45 Port | 1x 10M/100M auto adjust Ethernet port | |
| Extendable Port | Intercom | support |
| Speed pulse | External connect | |
| Others | LED panel | |
| Wireless Modules | 3G WCDMA | optional |
| 4G LTE | Optional, support TD-LTE/FDD-LTE | |
| WIFI | Optional, 802.11b/g/n | |
| GPS | Optional, embedded module, show Geo-location, speed etc. Wireless upload function (Optional) | |
| Acceleration sensor | G-sensor | Built-in |
| Software | Vehicle Network Management System (VNMS / CMS) | 4G 3G video monitoring and GPS tracking etc. PC/ Web/Android/iPhone/iPad platforms, multi-languages. |
| Vehicle Analysis Software (VAS) | Video playback and analysis | |
| Parameter | Instruction | |
| ＋8V～＋36V | Voltage Input:＋8V～＋36V Power will be auto off to self-protection activated if device is out of this range for long time, | |
| 12V | Voltage output 12V (+/-0.2V 0), current for max. 4A | |
| ≤6V | ACC Off | |
| ≥7.5V | ACC On | |
| 75Ω | Average 75Ω per video channel | |
| 2V p-p | 75Ω per each 2V p-p CVBS signal | |
| 0-4V | Defined as low level alarm | |
| > 4V | Defined as high level alarm | |
| 1x HDD slots 1x SD slots |
HDD (Hard Disk) of 2.5” SATA, 4TB max. SD card of current brands, 256GB max. SD card can be used for recording, upgrade etc. |
|
| -20°C~+80°C | Temperature in well ventilated condition |
