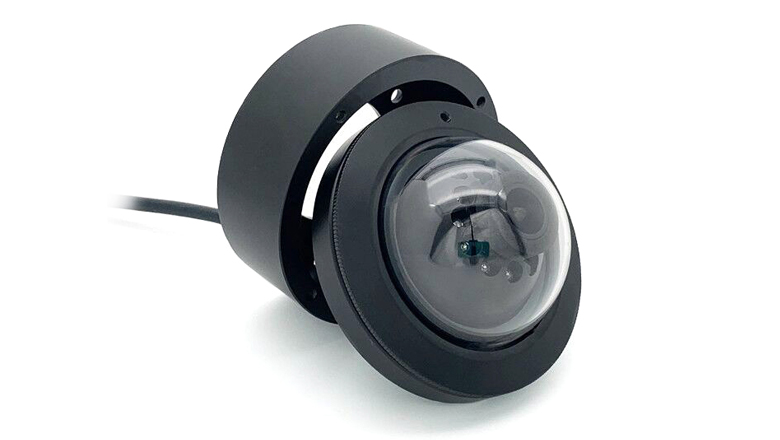

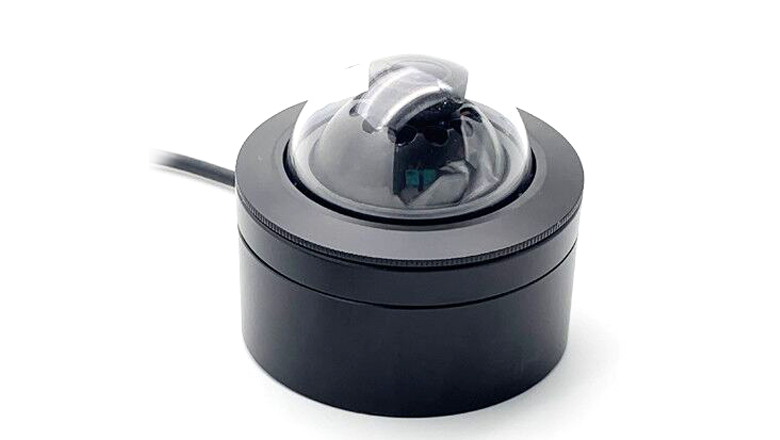

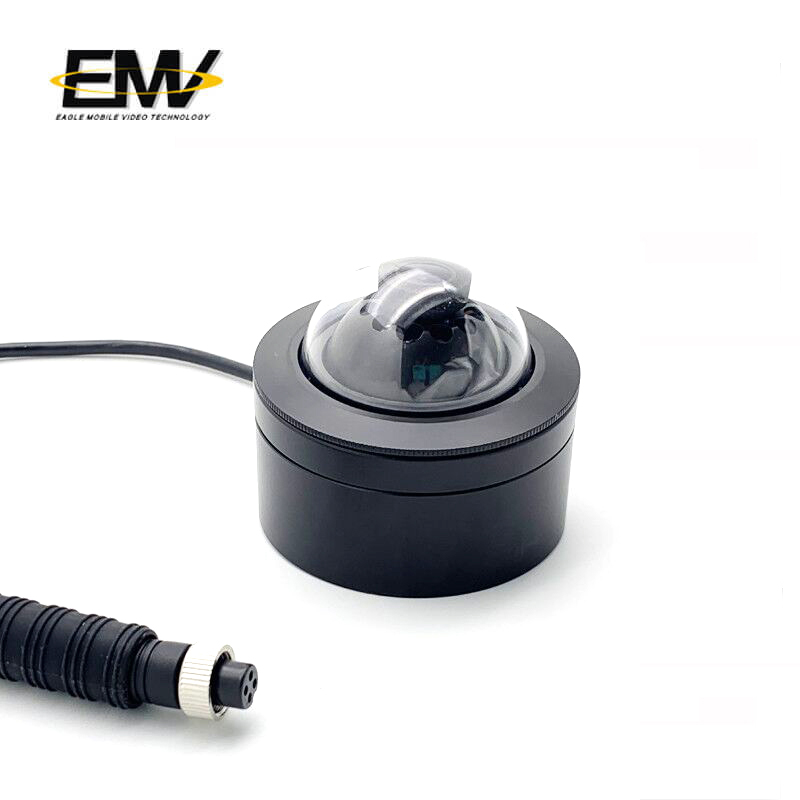

● AHD1080P 960P Vehicle Angle Adujstable mini Dome camera ;
● Main Stream:HD 1920*1080 1-25 fps
● 2.0 Mega Pixel 1080P,1920X1080P ;1.3Megapixel 960P ,1280X960P.
●Lens: 2.8mm /3.6mm
●Lens Angle: 120°/100°
●Audio: With audio
●IR Distance: 10 m
●IR Light:10PCS
●Waterproof Rate：IP67K
●Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
Product Specification
|
. Model |
EMV-043 |
|
. Video signal |
AHD/HD, internal |
|
. Image Sensor |
1/3" 1.3MP CMOS Sensor, 1280*960 Resolution 1/3" 2MP CMOS Sensor, 1920*1080 Resolutio |
|
. Signal System |
NTSC / PAL System Automatically |
|
. Viewing angle |
95° / 3.6mm lens (Default) 120°/ 2.8mm lens (Optional) |
|
. Infrared Lamp |
10pcs LEDs (Optional) |
|
. Infrared distance |
10m |
|
. Min.ILLumination |
Day(0.1Lux),Night(0.02Lux Open the lamp) |
|
. S/N Ratio |
Better than 50dB |
|
. Video output |
1 Vp-p, 75Ω, AHD/HD |
|
. AGC |
Auto |
|
. BLC |
Auto |
|
. White Balance |
Auto/Manual |
|
. Synchronizing System |
Internal Synchronization |
|
. Gamma Correction |
0.45 |
|
. Input voltage |
DC12V |
|
. Waterproof |
IP67K Water-proof & Vandal-proof housing |
|
. IR Cut Filter |
Default |
|
. Vibration Rate |
10G |
|
. Built-in Microphone |
Optional |
|
. Tilt Adjusting |
Angle Adjustment with adaptor 0°, 15°,25° for optional. |
|
. Connectors |
4PIN / BNC / RCA optional |
|
. Shell Material |
Metal |
|
. Casing Color |
Black |
|
. Image |
Mirror / non-Mirror image optional (Default Mirror image) |
|
. Support Normal / Reversing Image Switching |
Optional |
|
. Operating Temperature |
-20℃~+75℃ RH95% Max. |
|
. Storage Temperature |
-30℃~+85℃ RH95% Max. |
|
. Voltage Input |
DC12V |
|
. Dimension |
76(D) x 55.8(H) mm |
