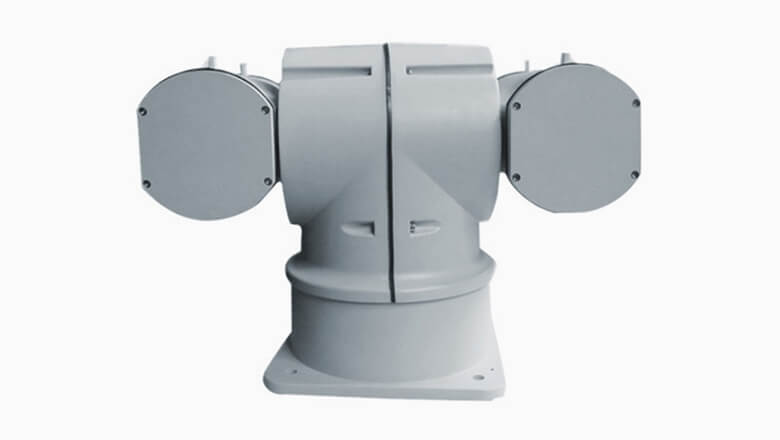

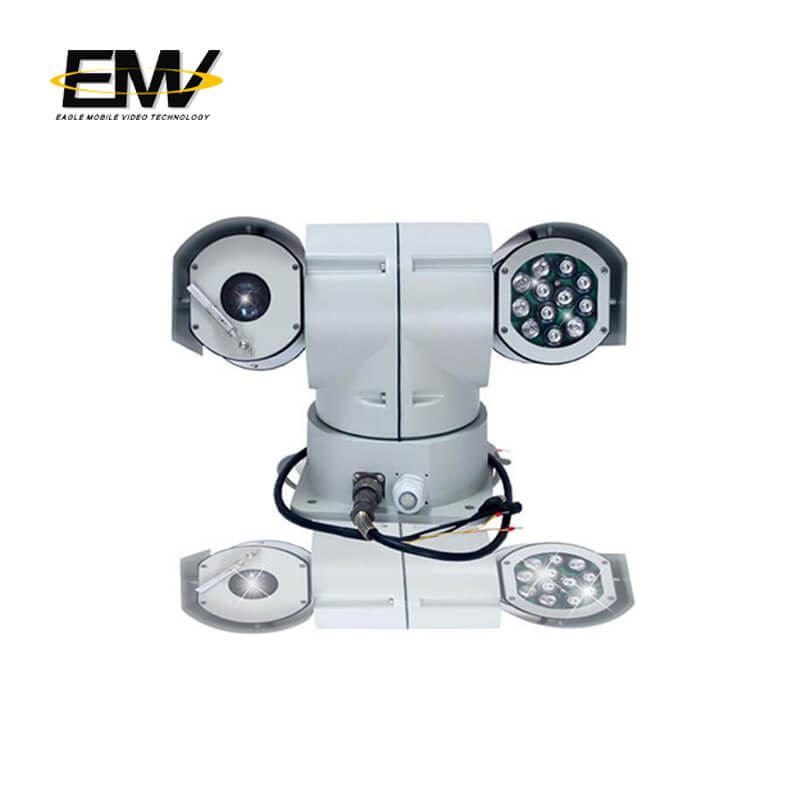

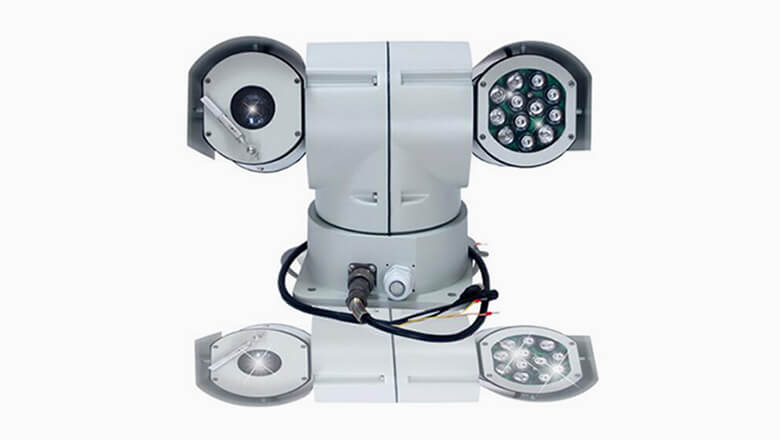

● High die-cast aluminum casing，waterproof grade IP6 6;
● Sselection of high quality infrared light, the irradiation distance is up to 100 meters.
● 128 preset positions, 6 cruising tracks and 3 self-learning paths;
● Pan rotation speed 0~100°/s, tilt rotation speed 0~80°/s.
● 360°continuously rotation, the tilt angle up to 180°, auto flip.
● Camera position coordination and magnified zoom display function.
● It could be widely used for car surveillance at night and bad environment, (especially suitable for monitoring in dark district without light);
● Power voltage input for car surveillance: DC12V/24V.
● Built-in surge protection and lightning protection, to effectively prevent 4000v Instantaneous current;
● Detection distance: 100M.
Product Specification
| Parameter / Model | EMV-007L | EMV-007H |
| Camera module | ||
| image sensor | 1/3’CMOS | 1/2.8’ CMOS |
| effective pixels | 1280(H)*960(P) | 1920(H)*1080(P) |
| illumination | Color 0.05Lux/F1.6, monochrome 0.005Lux/F1.6 | |
| White balance | automatic white balance / manual | |
| illumination enhanced | support | |
| 3D noise reduction | support | |
| Gain control | AGC(on/off) | |
| SNR | ≥50dB | |
| day and night mode | dual filter color to monochrome auto/manual switch | |
| Lens | ||
| focal length | f=5.35mm(wide angle)~96.3mm(remote) | |
| optical zoom | 18 times | |
| Digital zoom | 20 times | |
| Video parameter | ||
| video format | AHD format | |
| output interface | BNC interface | |
| transmission distance | Maximum 300 meters | |
| Function | ||
| IR distance | high performance LED light source, the distance up to 100 meters | |
| horizontal rotation range | 0°~360° continuous rotation | |
| up and down rotation range | -90°~+90° | |
| horizontal rotation speed | 0°~60°/s | |
| Vertical rotation speed | 0°~60°/s | |
| preset position | 128,accuracy ±0.1° | |
| linear scanning | 3 lines(Users can set the starting point and the end point of the line scanning, scanning speed can be modified, scanning angle is automatically identified based on the sequence of the starting point and the end point of the line scanning); |
|
| trajectory | Maximum record and demonstration 4 groups of trajectory of scanning path, maximum including 100 actions for each group | |
| speed dome function | Humanization focus, automatic speed matching function, power outage memory function | |
| display | Horizontal, vertical, lens coordinate display, address display | |
| speed dome control | RS485 | |
| protocol | Automatic identification PELCO D/P protocol | |
| menu | Support OSD 5 language menu | |
| General | ||
| Power supply | AC24V/DC12V(±10%) | |
| Power consumption | Max60W | |
| Working environment | Working temperature -35℃~+55℃(heater activated -40℃-+50℃);working humidity ≤ 90% | |
| IP ranking | IP66 | |
| dimension(mm) | Φ372*238 mm | |
| net weight | 6KG(no package) | |
