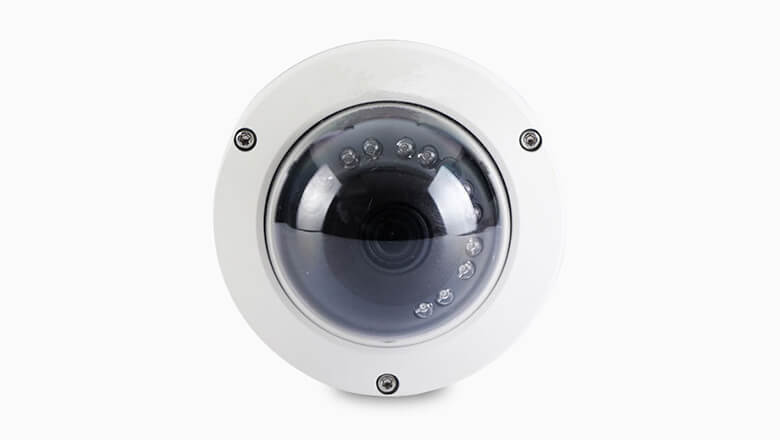

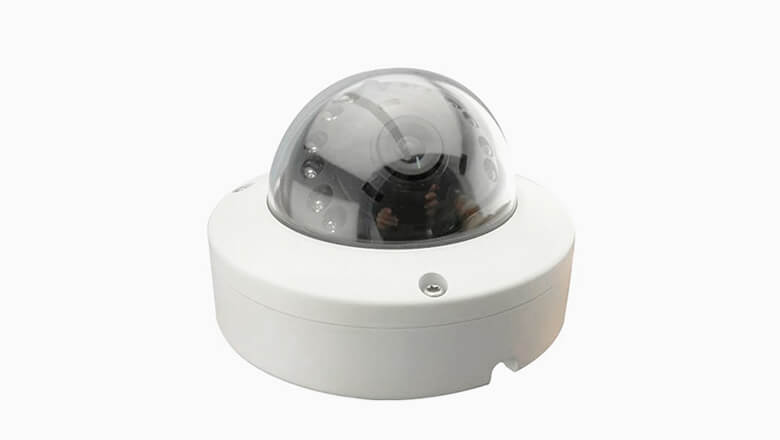

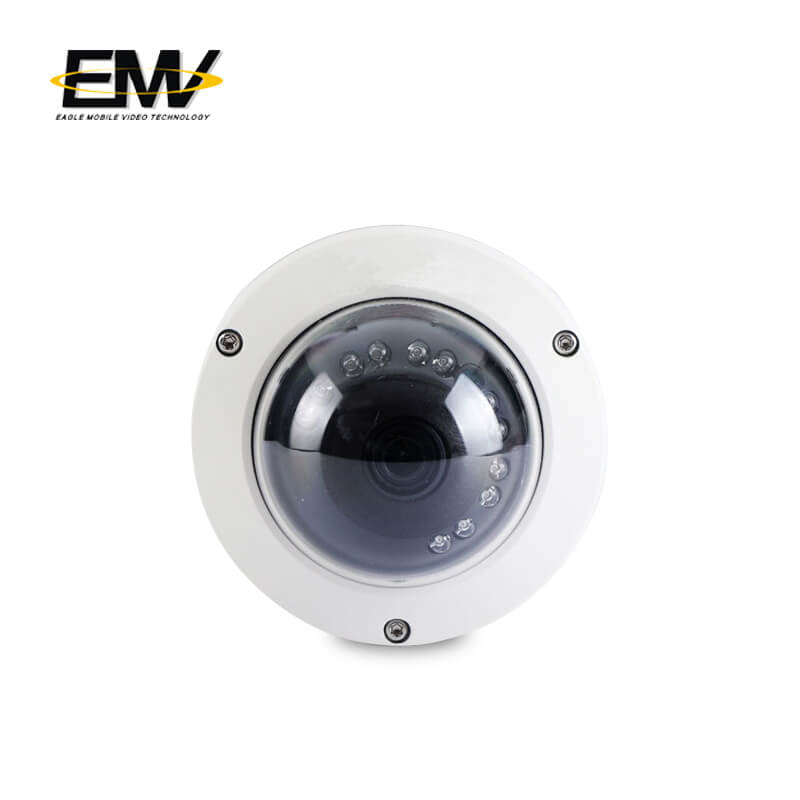

● Mini IR AHD Vandal proof Dome Camera.
● 2.0 Mega Pixel 1080P,1920X1080P ;1.3Megapixel 720P ,1280X720P.
● 12pcs IR LED, IR distance: 10m-15m , whithout IR optional.
● Megapixel Lens: 2.1mm/2.8mm/3.6mm.
● Audio: Without audio( With Audio optional).
● Waterproof Rate:IP66.
● Shell material: aluminum alloy.
● Vandal proof Rate:10K.
● Suitable install in BUS,Vehicle,Police Car,Prison car,Train, Ship.
Product Specification
| Model | EMV043AS | EMV043AH |
| sensor | 1/3” 720P Megapixel CMOS AHD | 1/2.8” 1080P Megapixel Sony CMOS AHD |
| Effective Pixels | 720P 1.3 Megapixel | 1080P 2.0Megapixel |
| Signal system | PAL/NTSC | |
| Horizontal resolution | 720P | 1080P |
| minimum illumination | 0lux/F1.2 (LED ON) | |
| Day & Night System Mechanical ICR | Day & Night System Mechanical ICR | |
| Audio | Without Audio,With Audio optional | |
| lens | F=2.1mm/2.8mm/3.6mm | |
| SNR | ≥50dB | |
| Shutter speed | PAL:1/50 s -1/100.000 s, NTSC : 1/60s – 1/100.000 s | |
| W/B | ATW | |
| IR wavelength | 850nm | |
| IR light | 12pcs | |
| IR distance | 10m | |
| Video output | 1Vp-p,75 ohm, BNC | |
| Power supply | DC 12V ± 10% ,0.5A | |
| Working temperature | -10℃~+50℃ | |
| Waterproof grade | IP66 | |

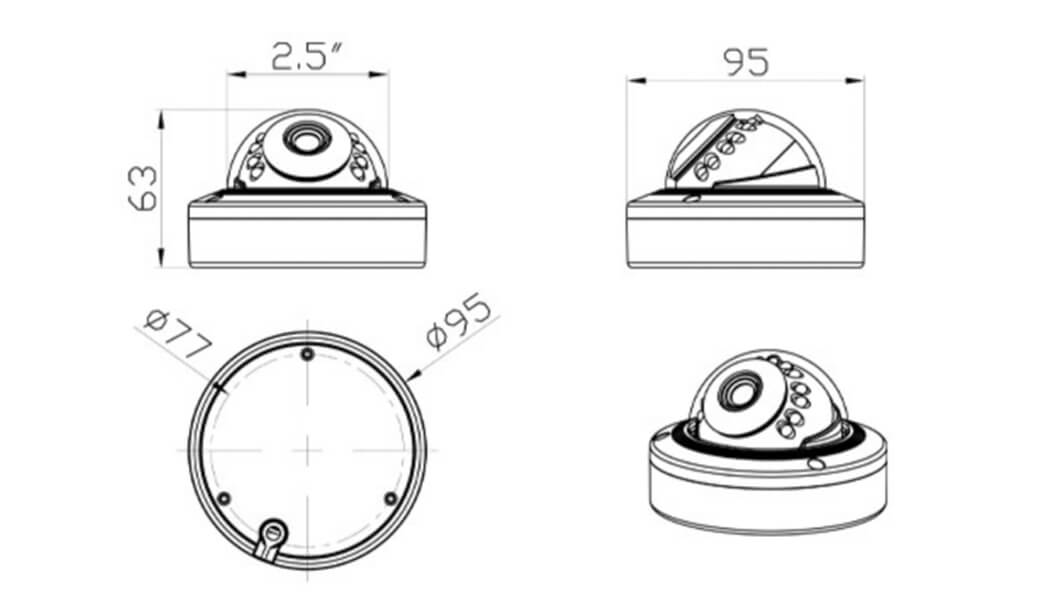

| Dimension | 95mm x 95mm x 63mm | |
| Weight | 0.35Kgs | |
