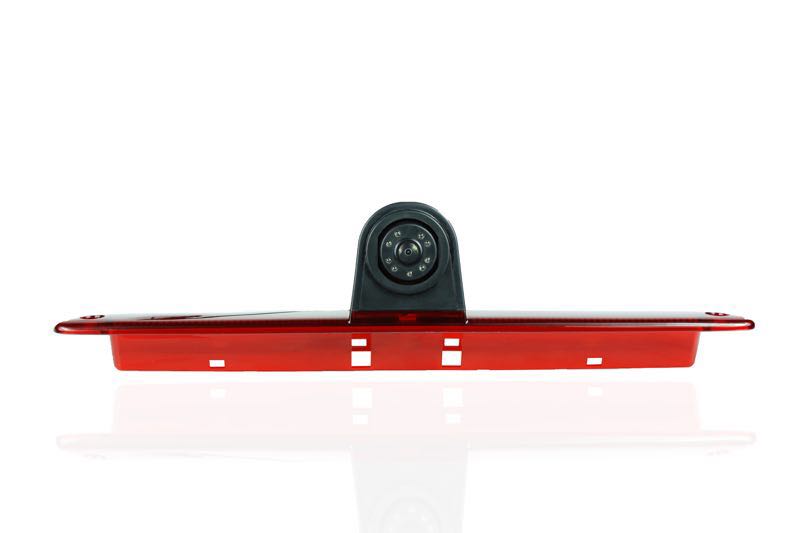

1、Type：Mercedes Sprinter / VW Crafter brake light camera use for 2007-2019
2、Sensor :Sony CMOSE/ CMOS
3、Resolution:1920*1080P,1280*720P 976(H)×592(V),720(H) x 520(V)
4、TV line：1080P/720P/1000TVL/520TVL
5、Lens: Waterproof ：IP68
6、View angle: 170°
7、Power voltage:12V
8、Operation Temp.: -30℃~+80℃
9、Mini Lumination: 0 Lux （IR*8）
10.CVBS& 4pin Aviaction connector Optional
Product Specification
|
EMV033MAA |
EMV033MAB |
EMV033MAC |
EMV033MAD |
||
|
Image Sensor/Resolution |
1/4” PC7070 CCD |
1/3”Sony Cmos |
1280*720 |
1920*1080 |
|
|
Effective Pixels |
720(H)*480(V) |
976(H)×592(V) |
1.3Mp |
2.0mp |
|
|
Lens |
2.1mm |
||||
|
View Angle |
170 Degree |
||||
|
Car Fitment |
Mercedes Sprinter / VW Crafter brake light camera use for 2007-2019 |
||||
|
TV Format |
PAL/NTSC(Auto Optional) |
||||
|
Voltage |
DC 12V |
||||
|
Working Temperature |
-20℃~70℃，RH95% MAX |
||||
|
Storage Temperature |
-30℃~80℃，RH95% MAX |
||||
|
Electronic Shutter |
1/60~1/100,000 Sec |
||||
|
Illuminance |
0.01 Lux(LED On) |
||||
|
Waterproof |
IP68 |
||||
|
Night Vision |
8pcs IR LED Lights |
||||
|
Night Vision Distance |
35ft |
||||
|
Audio |
N/A |
||||
|
S/N |
≥48dB |
||||
|
White Balance |
Auto |
||||
|
B.L.C |
Back Light Compensation(Auto) |
||||
|
Video Output |
1.0vp-p,75Ohm |
||||
|
Frenquency |
50Hz/60Hz |
||||
|
Consumption Current |
60~110mA |
||||
|
Power Consumption |
<3W |
||||
|
Connector |
RCA/4PinAviation For Optional |
||||
|
Dimension |
3 |
||||

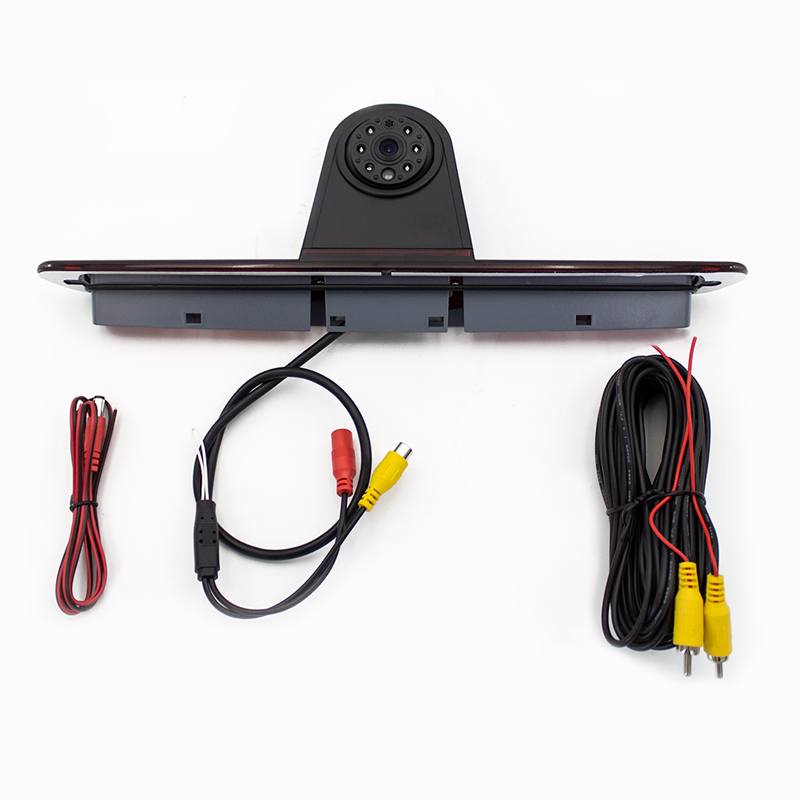

1x Brake Light Camera
1 x Video Cable(6M)
1 x Power Cord
1 x Manual
