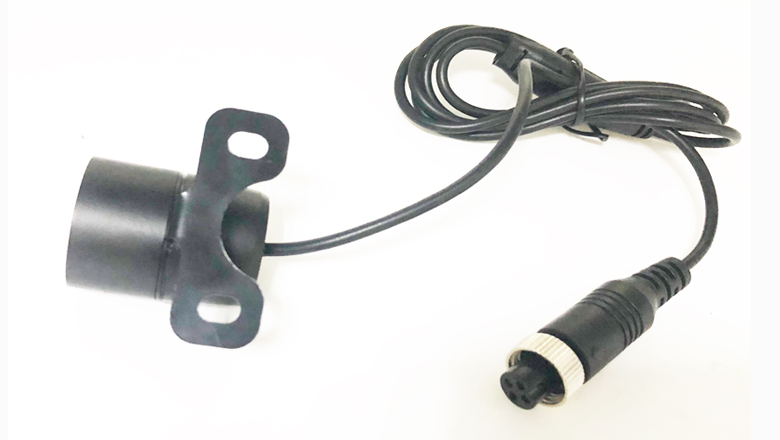

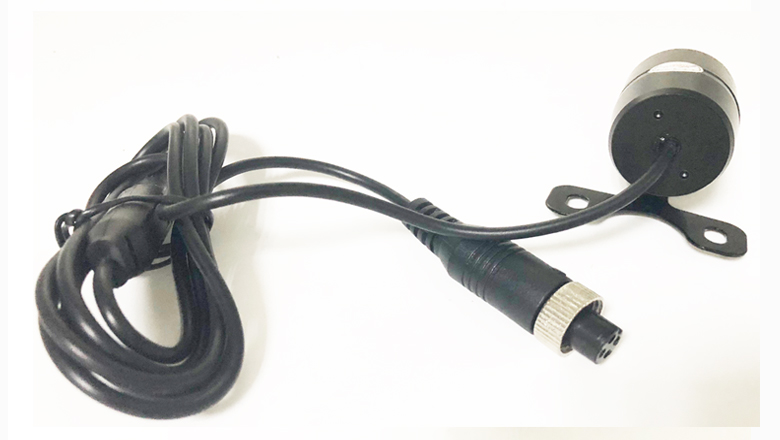

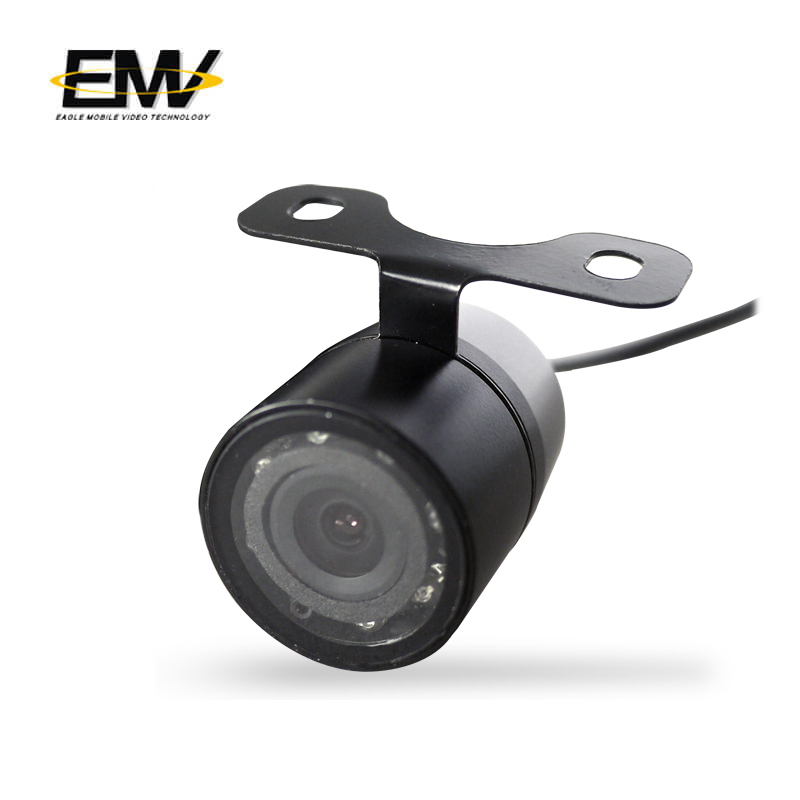

● Car Back View Camera
● 1.3 Mega Pixel 960P ,1280X960P
● Lens: 2.8mm
● Lens Angle: 110°
● Infrared LED light: 8pcs
● Ir distance:5m
● Alloy housing ,Outside use
● Waterproof,IP67
Product Specification
|
Model |
1.3MP 960P Back View CAMERA |
|
Image sensor |
1/3" progressive scan CMOS |
|
Horizontal Resolution |
1.3Mega pixel |
|
TV system |
PAL/NTSC |
|
Effective Pixel |
1280(H)*960(V) |
|
Minimum Illumination |
0.01Lux@(F1.2,AGC ON),0Lux with IR |
|
S/N |
≥44dB |
|
Auto Gain Control |
AUTO |
|
Back light compensation |
AUTO |
|
White balance |
AUTO |
|
Electronic shutter |
AUTO/1/50（1/60）-1（50，000Sec） |
|
Video output |
Follow CVBS standard, 1.0V p-p Composite Output 75ohm |
|
Image Function |
Original/Reverse image |
|
Output Adapter |
RCA(BNC/4 4P aviation head cable) |
|
Lens |
2.8mm(3.6mm optional) |
|
IR LEDS Quantity |
7 PCS Ф3 LEDS |
|
IR distance |
5 meters |
|
IP grade |
IP67 |
|
Operating Temperature/Humidity |
-20°C~+70°C/Humidity≤90%(No condensation) |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
≤1.5W |
|
Common used in car, MPV, Van etc, rear view camera |
|
