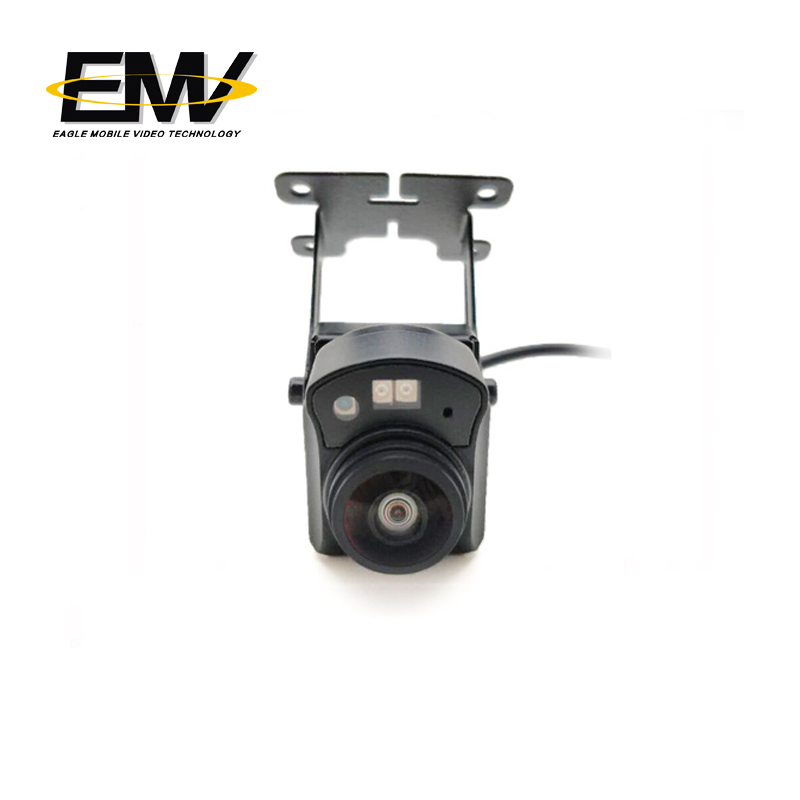

● AHD1080P Vehicle Metal mini side view camera ;
● Main Stream:HD 1920*1080 1-25 fps
● 2.0 Mega Pixel 1080P,1920X1080P ;
●Lens: 2.1mm/2.8mm
●Lens Angle: 140°/100°
●Audio: With audio
●IR Light:2pcs
●Waterproof Rate：IP67
●Zn-Al alloy housing with better waterproof and prevent violence
●Easy installation, 3M double-sided adhesive or 4 screws fixed
Product Specification
|
Model |
Mini Audio Inside view camera |
|
Image Sensor |
1/3" progressive scan CMOS |
|
Horizontal Resolution |
1.3Mega pixel |
|
TV system |
PAL/NTSC |
|
Effective pixels |
1280(H)*960(V) |
|
Minimum Illumination |
0.01Lux@(F1.2,AGC ON),0Lux with IR |
|
S/N |
≥44dB |
|
Auto Gain Control |
Support |
|
Back light compensation |
Support |
|
White Balance |
AUTO |
|
Digital Noise Reduction |
Adaptive digital noise reduction,2D/3D-DNR |
|
Electronic Shutter |
AUTO/1/50（1/60）-1（50，000Sec） |
|
Video Output |
Follow AHD standard |
|
Image Function |
Original image |
|
Output Adapter |
Aviation, 4PIN Interface Optional |
|
Lens |
2.1mm/2.8mm/3.6mm |
|
IR LEDS Quantity |
2pcs |
|
IR distance |
5m |
|
IP grade |
IP67 |
|
Operating Temperature/Humidity |
Temp.:-40°C to + 85°C, Humidity＜95% |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
12V DC±5%，80~95mA，0.9~1.2W |
|
Dimension |
45*43*32(mm) |
|
Common used in school bus, Bus, truck etc, Car camera |
|
Packing & Shipping
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Certificate
