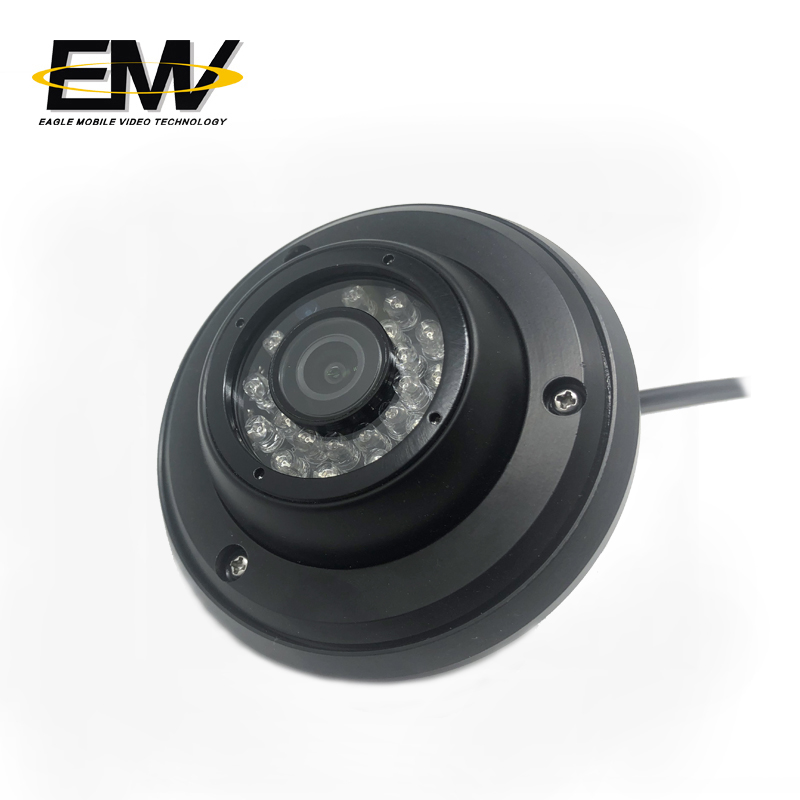

●Mini IR Vandalproof Dome Inside view camera, Metail Dome Camera
●Sensor: 1.3 Megapixel 960P AHD, 2.0MP 1080P AHD
●Lens: 2.8mm/3.6mm
●Lens Angle: 120°/90°
●Audio: With audio
●Infrared LED light: 24PCS
●IR Distance: 8m
●Waterproof Rate：IP66
●Weight: 0.2KG
●Dimension : 100(W) x60(H) x100(D)mm
●Color: Black
Product Specification
|
Video signal |
AHD, internal |
|
Image Sensor |
1/3" 1.3MP CMOS Sensor, 1280*960Resolution 1/3" 2MP CMOS Sensor, 1920*1080 Resolution |
|
Signal System |
NTSC / PAL |
|
Viewing angle |
120°/ 2.8mm/3.6mm lens (Default) |
|
Infrared Lamp |
24 leds |
|
Infrared distance |
8m |
|
Min.ILLumination |
Day(0.1Lux),Night(0.02Lux Open the lamp) |
|
S/N Ratio |
Better than 50dB |
|
Video output |
1 Vp-p, 75Ω, AHD |
|
AGC |
Auto |
|
BLC |
Auto |
|
White Balance |
Auto/Manual |
|
Synchronizing System |
Internal Synchronization |
|
Gamma Correction |
0.45 |
|
Input voltage |
DC12V |
|
Waterproof |
No (internal use only) |
|
IR Cut Filter |
Default |
|
Vibration Rate |
10G |
|
Microphone |
Yes (internal mic) |
|
Tilt Adjusting |
Mini eye-ball (position ball in any direction) |
|
Cable jack |
4PIN Female/BNC/RCA optional |
|
Housing Material |
Metal |
|
Color |
Black |
|
Image |
Mirror / non-Mirror (Default Mirror image) |
|
Normal/Reverse Switch |
No |
|
Mounting |
Fully adjustable locking mounting bracket. |
|
Operating Temperature |
-30℃~+70℃.RH95% Max |
|
Dimension |
D100xH60(mm) |
