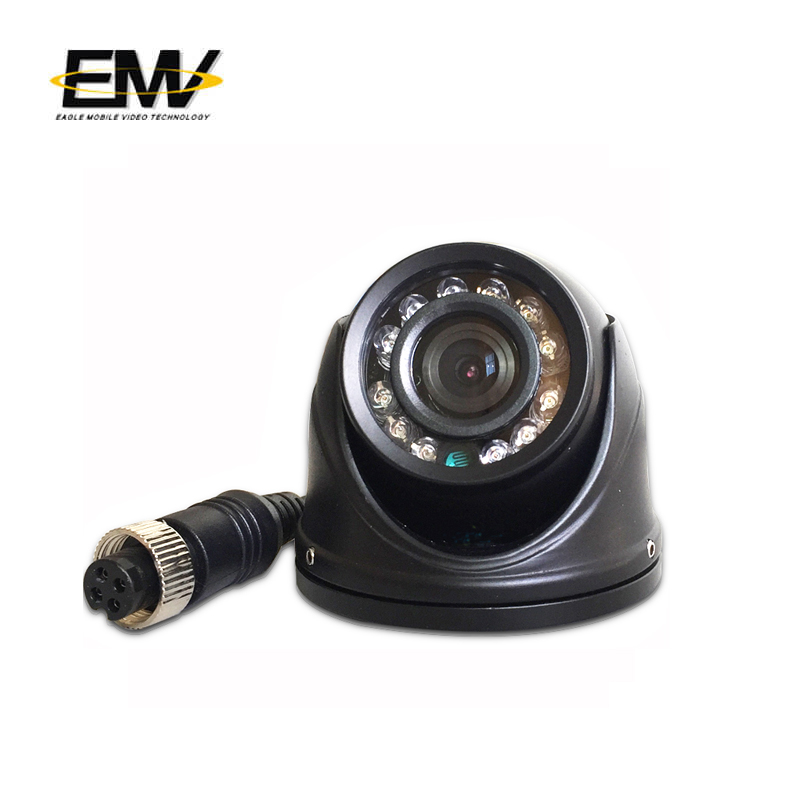

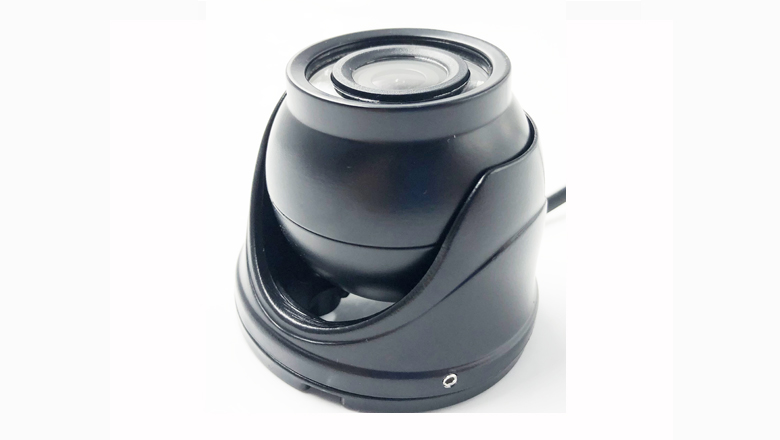

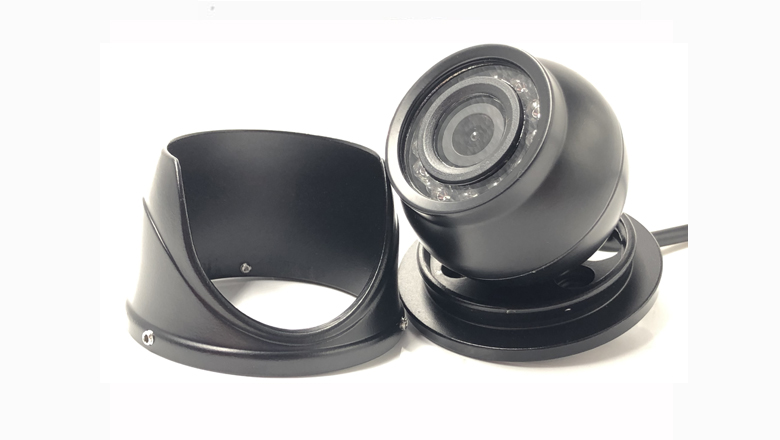

●Mini IR Vandalproof Dome Inside view camera, or Front view camera (without IR)
●Sensor: 2.0MP 1080P AHD, 1.3 Megapixel 960P AHD,1.0 Megapixel 720P
●Lens: 2.8mm
●Lens Angle: 120°
●Audio: Without audio
●Infrared LED light: No
●IR Distance: No
●Waterproof Rate：IP65
●Weight: 0.2KG
●Dimension : 60(W) x60(H) x55(D)mm
●Color: Black/White
Product Specification
|
Model |
EMV002MG |
EMV002LG |
EMV002MH |
|
Sensor |
Color 720P |
Color 960P 1.3MP |
Color 1080P ,2.0MP |
|
TV System |
PAL/NTSC |
||
|
Picture Elements |
1.0MP |
1.3mp |
2.0MP |
|
Horizontal Resolution |
720P |
960P |
1080P |
|
Sensitivity |
0.01 Lux at F1.2 , Low illumination |
||
|
Scanning System |
2:1 Interlace |
||
|
Synchronization |
Internal |
||
|
Infrared Spectrum |
850nm |
||
|
S/N Ratio |
More than 50 dB, (AGC Off) |
||
|
Auto Gain Control (AGC) |
Auto |
||
|
White Balance |
Auto |
||
|
Electronic Shutter |
Auto |
||
|
Back Light Compensation |
Auto |
||
|
Infrared LED |
12pcs LEDs for options |
||
|
Infrared LED Range |
10m-15m |
||
|
Video Output |
1 Vp-p, 75Ωcomposite , BNC x1 |
||
|
Audio Output |
Without |
||
|
Gamma Ratio |
0.45 |
||
|
Lens |
F=2.8mm Standard Lens(3.6mm optional) |
||
|
Exterior Focus Adjustment |
N/A |
||
|
Pan Adjusting |
N/A |
||
|
Tilt Adjusting |
N/A |
||
|
Power Supply |
12V DC ±10% |
||
|
Power Consumption |
80mA |
||
|
Dimensions (L X W X H) |
D60xH55(mm) |
||
|
Net Weight |
200g |
||
|
Weatherproof/Water Proof |
IP65 |
||
|
Operating Temperature |
-10°C to +55°C |
||
