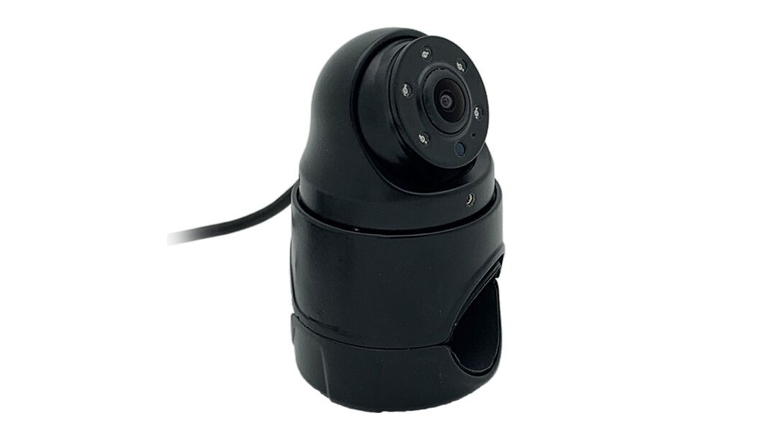

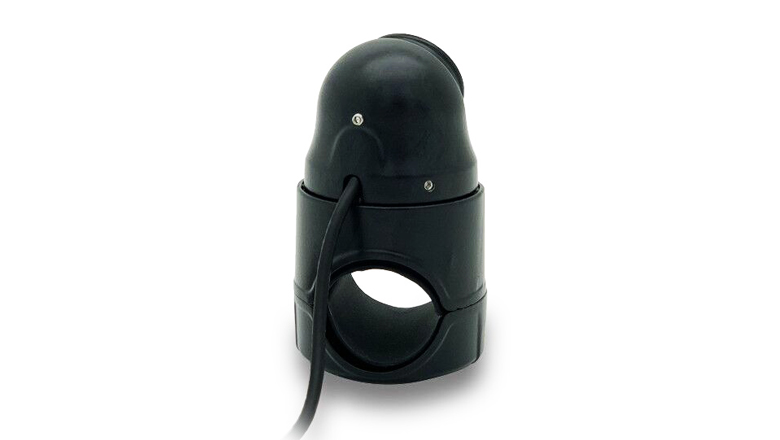

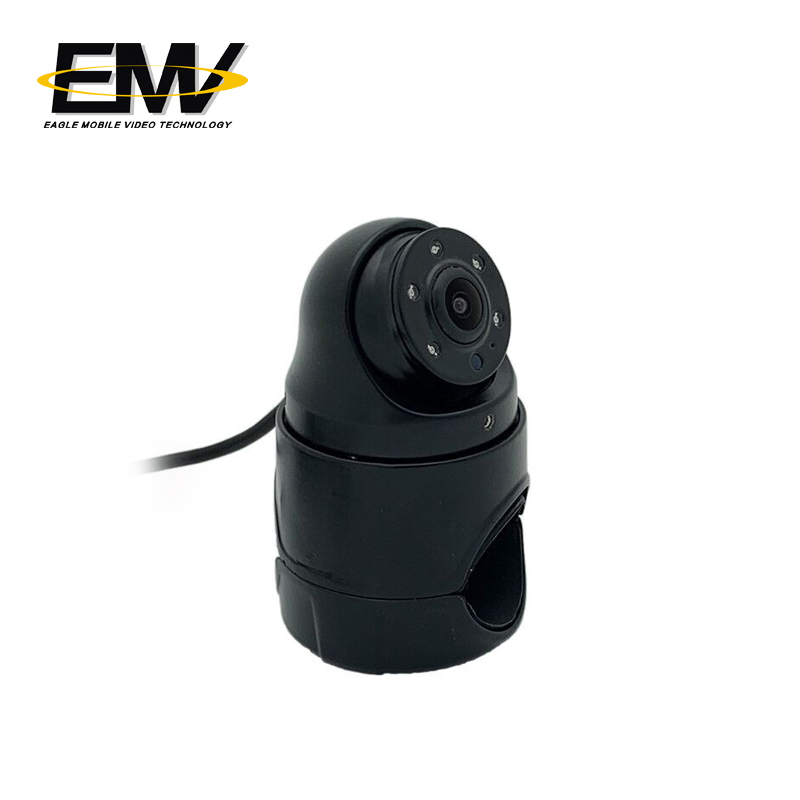

●side view camera
●Sensor:1.3Megapixel 960P AHD; 2.0 Megapixel 1080P AHD
●Lens: 2.8mm /3.6mm
●Lens Angle: 120°
●Adio: Without audio
●Infrared LED light: 5PCS
●IR Distance: 10m
●Waterproof Rate：IP69K
●Bracket material: iron
●Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
● Shell material: aluminum alloy,Vandalproof
● Vehicle Camera for Truck Fleet application
Product Specification
|
Model |
EMV-034M |
|
CCD or CMOS |
1/3"CMOS |
|
Resolution |
1.3 Mega Pixel ;2.0Mega Pixel |
|
Effective Pixels |
1280Hx960V;1920Hx1080V |
|
TV System |
PAL / NTSC (Optional Before Factory) |
|
Auto Control |
Auto Gain Control, Back Light Compensation, White Balance, Electronic Shutter |
|
Image Mirror |
Optional Before Factory |
|
Lens |
2.8mm/3.6mm |
|
Light Sensitivity |
0 Lux @ F1.2 (IR ON) |
|
Infrared Spectrum |
850nm |
|
Infrared LED Range |
5 LEDs /10 Meters |
|
Auto IR control |
3~5 Lux Cut |
|
Signal to Noise Ratio |
SNR>50 dB, (AGC Close) |
|
Video Output |
1V p-p, 75Ω, |
|
Audio Output |
Null |
|
Power Consumption |
DC12V±5%,150mA,1.8W |
|
A / V, Power Interface |
Aviation, 4PIN Interface Optional |
|
Adjustment |
Horizontal 0~360, Vertical 0~90 |
|
Dimensions |
(Φ x H) 80 x H 50 (mm) |
|
Weight |
0.3KG |
