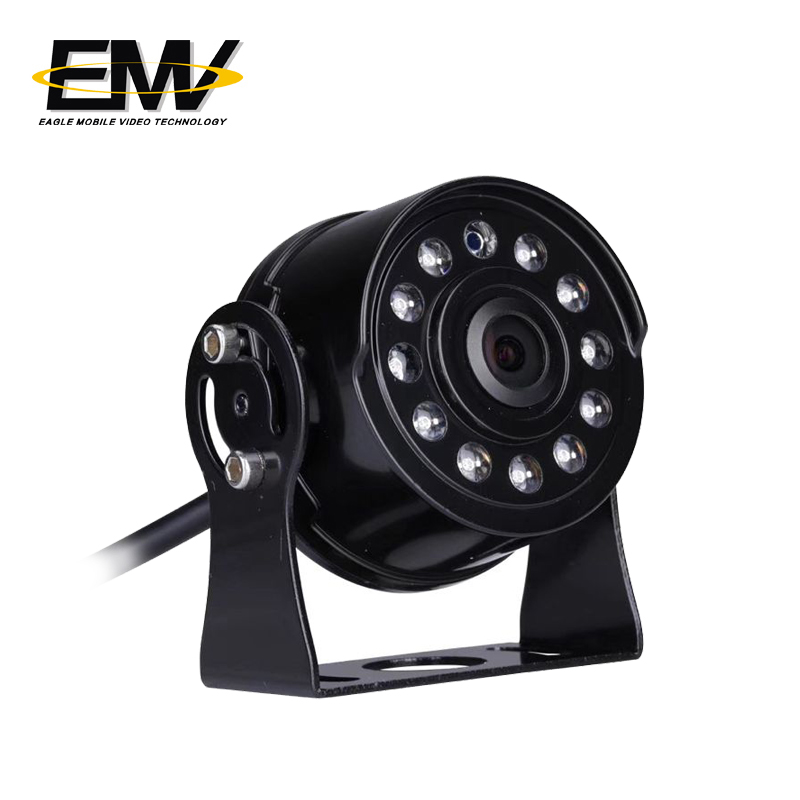

● AHD1080P 960P Vehicle Reverse view camera ;
● Main Stream:HD 1920*1080 1-25 fps
● 2.0 Mega Pixel 1080P,1920X1080P ;1.3Megapixel 960P ,1280X960P.
● 11pcs IR LED, IR distance:10m;
●Megapixel Lens: 2.8mm/3.6mm.
● Audio: Without audio
●Waterproof Rate:IP69k.
● Shell material: aluminum alloy,Vandalproof
● Vehicle Camera for Truck Fleet application
Product Specification
| Model | EMV031TL | EMV031TH |
| sensor | 1/4” 720P Megapixel CMOS AHD | 1/3” 1080P Megapixel Sony CMOS |
| Effective Pixels | 960P 1.3 Megapixel | 1080P 2.0Megapixel |
| Signal system | PAL/NTSC | |
| Horizontal resolution | 960P | 1080P |
| minimum illumination | 0lux/F1.2 (LED ON) | |
| Day & Night System Mechanical ICR | Day & Night System Mechanical ICR | |
| Audio | Without Audio/With Audio Optional | |
| lens | F=2.8mm/3.6mm/6mm/8mm | |
| SNR | ≥50dB | |
| Shutter speed | PAL:1/50 s -1/100.000 s, NTSC : 1/60s – 1/100.000 s | |
| W/B | ATW | |
| IR wavelength | 850nm | |
| IR light | 11pcs | |
| IR distance | 10m | |
| Video output | 1Vp-p,75 ohm, BNC | |
| Power supply | DC 12V ± 10% ,0.5A , POE optional | |
| Working temperature | -10℃~+60℃ | |
| Waterproof grade | IP69K | |
| Dimension | 60mm x 40mm | |
| Weight | 0.35Kgs | |
